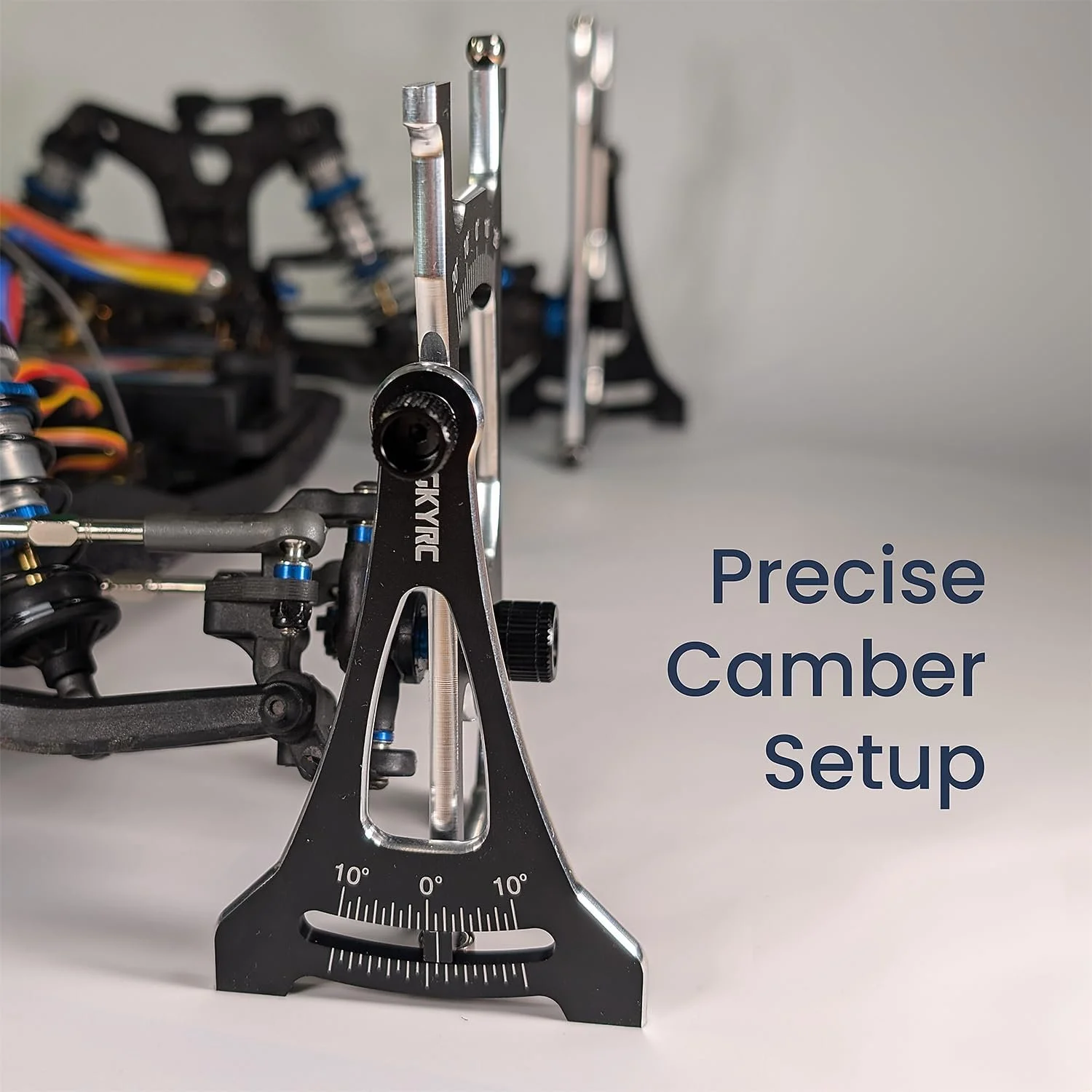

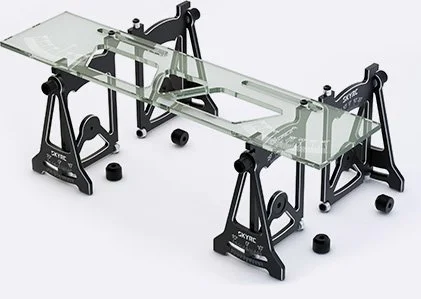

Thanks to this setup system set in elegant black, which was specially designed for 1/10 buggies, almost all important parameters can be optimized conveniently and easily.
After all, the better a RC car is set up, the more fun it gets when racing on the next track.
Adjustable Parameters: Camber (+/- 10°), Toe (+/- 40°), Caster (+/- 20°), Steering

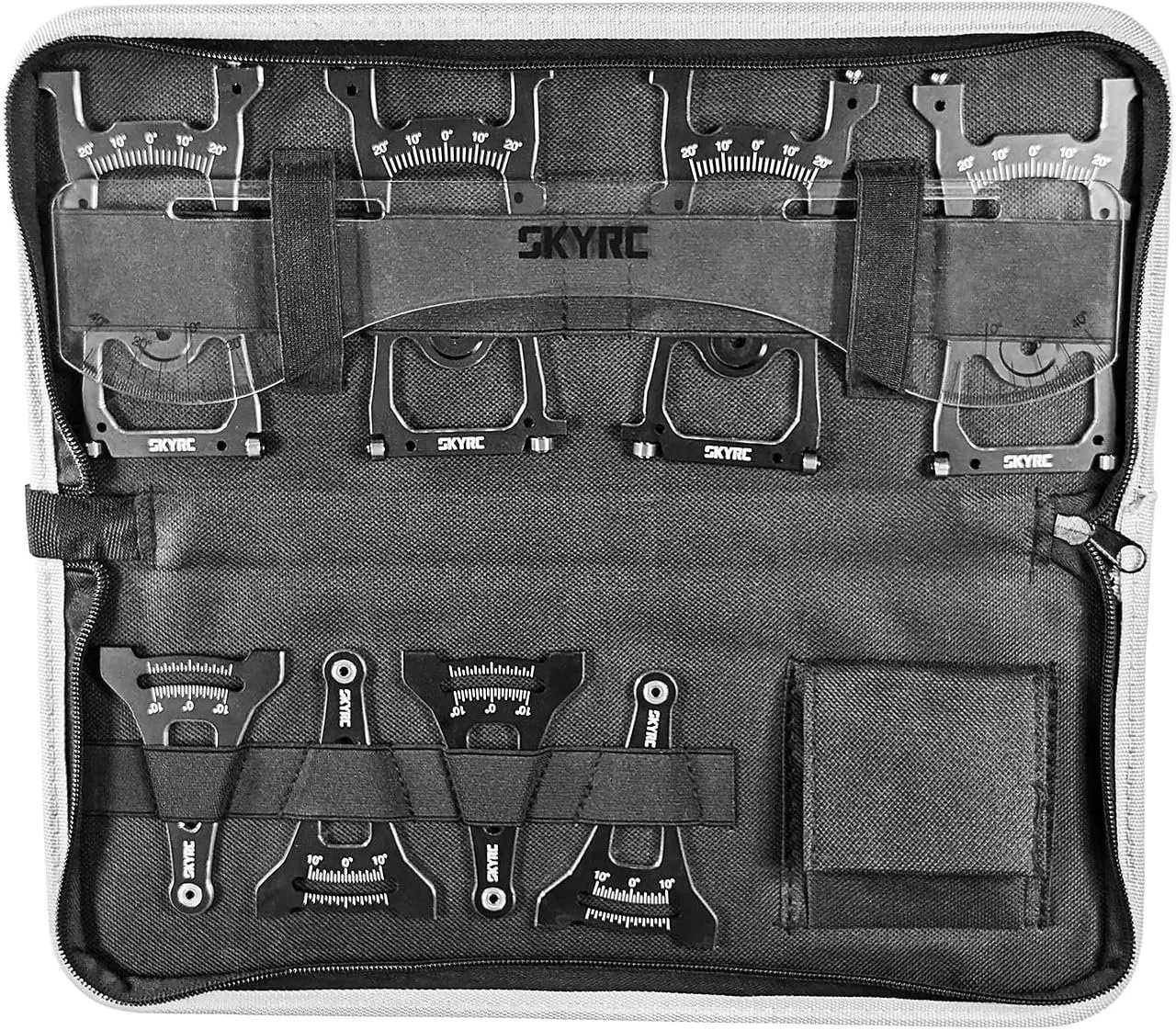

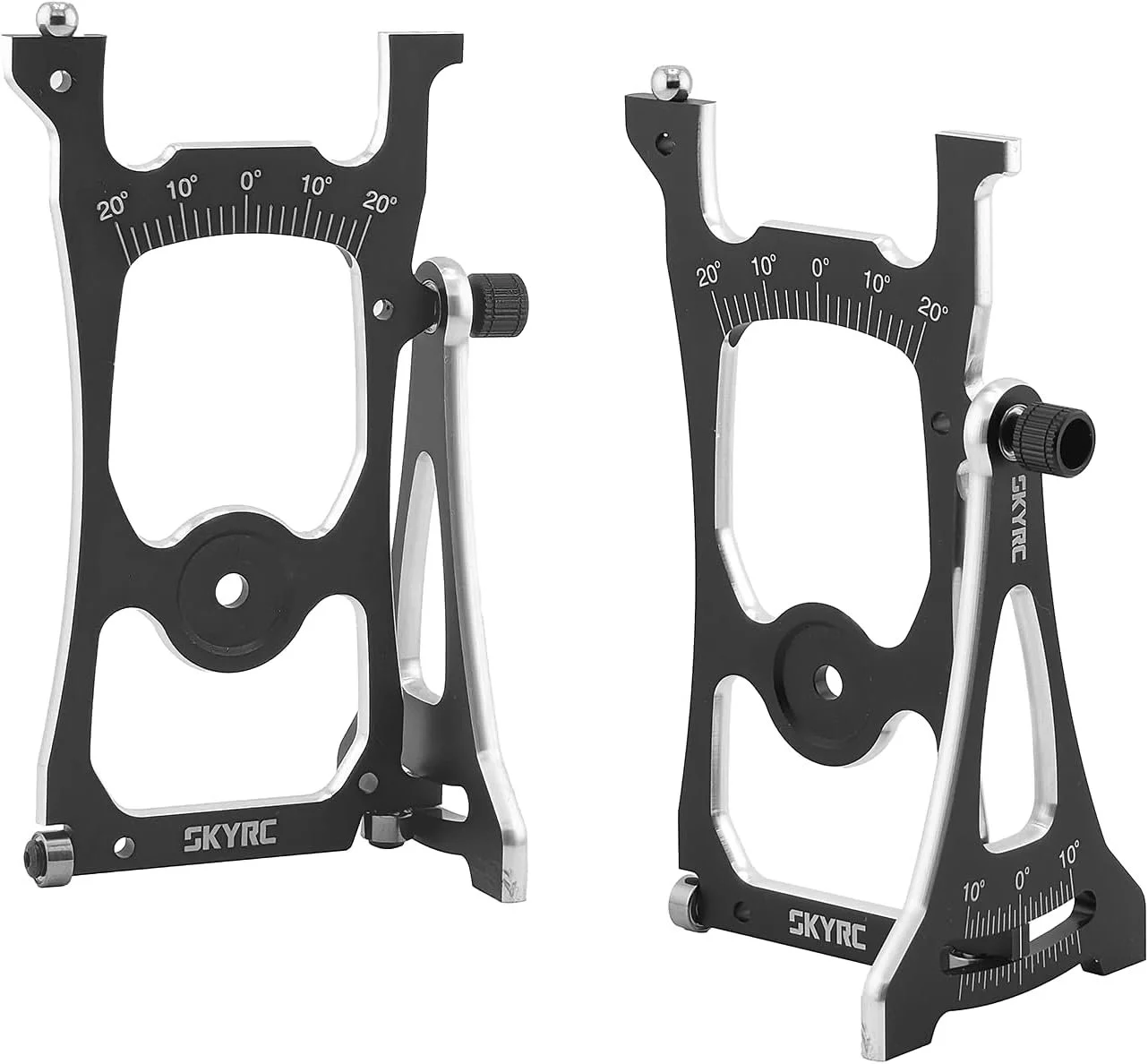

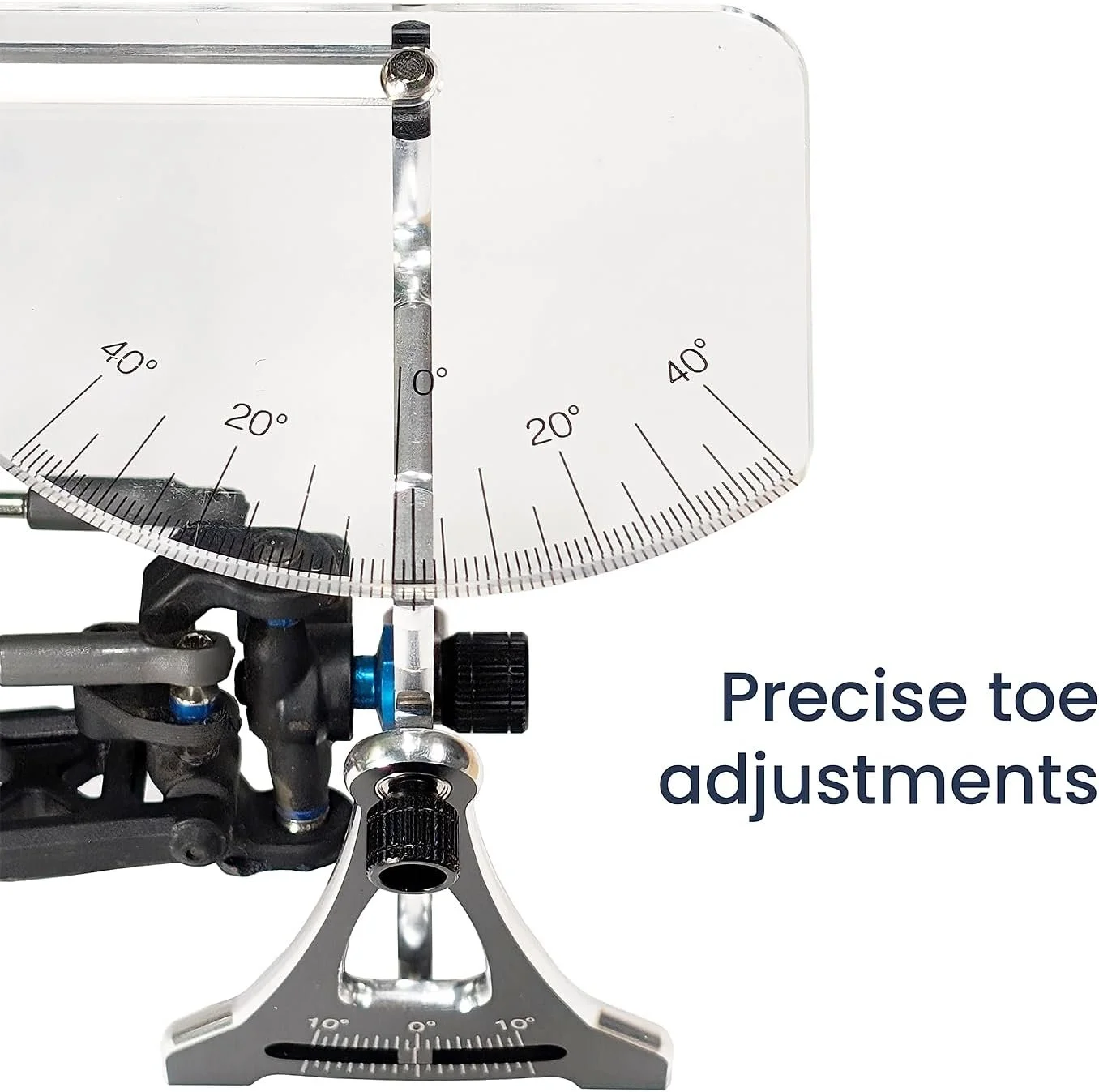

Includes: 4x Measurement gauges for each suspension, 1x Toe gauge
The SkyRC LED Pit Light features convenient touch sensitive controls with three color temperature modes and six adjustable brightness / dimming levels.
Incorporating 32 high-powered LED’s using around 11 watts power, the LED Pit Light provides clean, stress-free lighting equivalent to a 100 watt incandescent bulb. The LED technology eliminates the harsh whites of florescent lighting and high-heat commonly associated with close proximity lighting.With an elegant, stylish, foldable and rotatable design, the adjustable joints can be placed in almost any position without tightening or loosening knobs or screws, simply move the light to where you need and the lamp will hold to form.
Touch Control
270° rotation
Max 600 Lumens
Watch your Tyre
When it comes to RC racing, so many factors can contribute to the handling and performance of the vehicle.
But one thing we usually pass on is the most obvious on the tires. When looking at a brand-new touring car tire, you’ll see a molding line running right down the center. This line is called the seam, which can cause the car to have inconsistent handling. If you’re looking for every ounce of performance, this seam needs to be removed, so your car is 100% awesome right off the bat!
After removing this seam, most RC touring cars will benefit from a slightly wider and more static tire grip on the track surface, benefiting the turns and reducing rollovers.
RC cars run off the track, tip over, run with tires wore eccentric from time to time. These are the typical results of incorrect CG(Center of Gravity) due to the unbalanced four wheels. Uneven wheel weight distribution will cause the car to sway more in one direction than others. In this circumstance, the car will run unstable, difficult to control!
Even the slightest difference in weight has a significant difference for RC hobbyists when it comes to the race's performance and the car's condition!
High-quality aluminum with good toughness is selected as the sensor rebound material. Through the rigid and harsh manufacturing process, we created a high-precision I-shaped sensor.
To improve the overall accuracy, the measurement algorithm is enhanced from the predecessor: the precision can be obtained in the shortest time. The default unit is Gram, and switching to Ounce is also available!
When inaccuracy is found, the customized in-app program can get the calibration done quickly by tapping the screen three times.
*Users need to get the 2000g standard weight prepared for calibration
SkyRC smart weighing system is small and portable in size. It can accurately measure the weight distribution at the racing car's four corners. So RC racer can quickly adjust the weight at each corner to the best balance effect and win the race.
The App simulates practical scenarios to b intuitive and straightforward. The diagonal wheels are highlighted contrastingly in orange to indicate the selection. This is exactly the RC hobbyists' paint point when balancing
Check or Wreck? Investing significant time and effort into your RC car is crucial, and tire balancing plays a pivotal role in ensuring your on-road adventures are safe and smooth. Neglecting tire balance can lead to erratic handling, excessive vibrations, and potential damage to essential components.
Why Are RC Tires Unbalanced? Unbalanced RC tires can be caused by various factors, including uneven tread wear, track deterioration, racing vibrations, manufacturing variations, and weight differences in tires and rims. These seemingly small discrepancies demand high-precision tools for detection, as even minor imbalances can affect your RC car's stability and performance.
Introducing the SkyRC Digital Tire Balancer:
RC Pros for RC Pros: SkyRC brings you a digital app-based tire balancer designed for RC enthusiasts who demand precision and performance.
Balance by Data, Not Guts Guesswork: Say goodbye to guesswork – this balancer offers precise, visual feedback, eliminating uncertainty for optimal RC tire balance.
Cutting-edge Technologies: Equipped with load cell technology, motorized precision control, and precision-driven balancing algorithms, this balancer ensures accuracy and efficiency.
Features:
Load Cell Technology: The integrated Low Capacity High Accuracy (LCHA) aluminum load cell ensures accuracy down to 0.35g (1/10) and 0.5g (1/8), providing real-time weight data.
Motorized Precision: A built-in stepper motor controlled by PWM signals delivers precise weighing by position, ensuring accuracy and speed.
Precision-driven Balancing Algorithms: Tailored algorithms factor in weight distribution, speed, and performance to achieve optimal balance.
Versatile Compatibility: Compatible with 1/8 and 1/10 RC touring cars, making it suitable for a wide range of enthusiasts.
Effortless Link & App Control: Bluetooth connectivity and the RC Gears app simplify balancing control with real-time data guidance.
Harmony in Motion: Smoothes uneven treads, erasing vibrations for a balanced and stable ride.
2.8’’ TFT Screen: Enhanced viewing experience, even under direct sunlight.
Precision Engineering: Meticulously designed for durability and performance.
Calibration Made Easy: Built-in calibration ensures accurate weight measurements for different models and tire sizes.
Flexible Input Voltage: Compatible with 12~18V input voltage sources, with reverse polarity protection for added safety.
What’s in the Box:
Tire Balancer
1/10 Tire Adapter
Fixture
DC Power Cable
Balancing Putty (10g)
Carrying Case
Instruction Manual
Accessory: 1/8 Tire Adapter (SKU: SK-500045-02)
Specifications:
Size and Weight:
Size: 178(L) x 99(W) x 106(H) mm
Weight: About 800g
Display:
Display Type: 2.8-inch TFT
Display Size: 50 x 69.2 x 2.25mm
TechSpec:
Voltage: DC 12V~18V
Standby Current: ≤70mA
Working Current: 12V/≤750mA, 18V/≤550mA
DC Input Interface: Ø5.5mm DC Jack with I.D 2.5mm pin, inner Positive(+), outer Negative(-).
Working Temperature: 0℃40℃ (32℉104℉)
Working Humidity: 5%-90% (no condensation)
Storage Temperature: -10℃50℃ (14℉122℉)
Storage Humidity: 1%-75% (no condensation)
Upgrade your RC car experience with the SkyRC Digital Tire Balancer, ensuring a smoother and more balanced ride for your RC adventures. Say goodbye to imbalances and hello to precision! Available at Campbelltown Hobbies – your trusted source for RC enthusiasts.
GC-401 Three Sensor Drive Modes
L-DRIVE: More flexible and good for short distance and curved track
S-DRIVE: Standard mode
H-DRIVE: High curve, suitable for slipping and long straight distance track
Ultra-small Size & Lightweight
GC-401 gyro is leading the industry with a 21x21x11mm size and a weight of 3.6g. It can be easily mounted on all types of RC vehicles.
Correction of RC Vehicle Steering
GC-401 allows the racing car to travel in the specified direction and provides more accurate, stable, and more controllable steering at high speed.
SKYRC TORO TS160 Pro 160A Brushless Sensored ESC 6V 7.4V BEC Brushless ESC for 1/10 Touring Car 1/10 Buggy 1/10 Crawlers
Features :
Features:
1.Easy setting by app control.
2.Monitor the real-time racing data via the app.
3.Boost Timing Activation: RPM Mode & Throttle Mode.
4.Aluminum enclosure with better heat dissipation.
5.Switch automatically between Sensor and Sensorless modes.
6.With Overvoltage Protection,Low Voltage Protection,Motor Stall Protection,Over Temperature Protection.
7.Built-in BEC, outputting acurrent of up to 15A at voltages switchable between 6.0 and 7.4V.It eliminates the need for a separate battery to power various standard and high-voltage servos and peripherals!
8.The RC Gear app supports four languages: Chinese, English, Japanese, and German.
Description:
Supercharged by the high-performance chip from STMicroelectronics, TS160 Pro ESC takes its power and efficiency further than ever.
The proprietary optimized algorithm makes the speed controller snappy and responsive precise and sophisticated computing. For 1/10 RC Cars, TS160 Pro is definitely a Pro ESC
Specifications:
Brand: SKYRC
Item name: TS160 Pro ESC
Item NO.: SK-300078
Constant/Peak Current: 160A/850A
BEC Output: 6V or 7.4V Adjustable
Compatible Motor: Brushless Sensored & Sensorless Motor
Compatible Car: 1/10 Touring Car, 1/10 Buggy, 1/10 Crawlers
Motor Turns: 1/10 Touring Car ≥4.5T,1/10 Buggy ≥5.5T
Battery Cell: 2-3S LiPo/ 6-9S NiMH
ESC Programming: RC Gears app
Net Weight: 97g
Operation Temperature: -10℃~40℃
Storage Temperature: -20℃~50℃
Package included:
1x TS160 Pro ESC
Stop wondering how fast your RC car can run and how high your RC Airplane or helicopter can fly. Now all these data come at your finger with the GPS SPEED METER by SkyRC.
The popularity of GPS devices inspired SkyRC to design this gadget at about 41g. The Speed Meter is the result of SkyRC’s ongoing development efforts, boasting an ultra‐compact GPS module with hidden antenna design, the high‐sensitivity GPS receiver chip can do quick positioning, a robust controller IC to keep recording speed and altitude in real time.
This gadget is ideal for RC racing/flying and casual biking, driving and long journey. User could easily view the screen while working out data such as speed, altitude total mileage/ kilometer, longitude/latitude.
The gadget records the top speed and top altitude for instant recall after the running. It will help RC fans much to fine‐tune their RC gadgets to achieve better performance.
Receiver
L1, 1575.42 MHZ
Frequency
1.023 MHZ
Update frequency
1 Hz.
Antenna type
Built-in
Satellite signal reception sensitivity
-159dBm
Dimensions
65.7X39.6X20.8mm
Weight
41g
Operating temperature
0℃ to +50℃
Storage temperature
-10℃ to +60℃
Operating humidety
5% to 90%
With a nonstop passion for RC car racing, SkyRC upgraded its mechanical predecessor with Bluetooth.
The must-have RC Gears app definitely brings smartness to this gauge. Now our racers can measure the RC car's camber and toe angle and read the data on the phone and on the fly!
RC suspension tuning made easy and smarter!
When it comes to RC grade racing, so many adjustments can contribute to the handling and performance of the vehicle.
Adjusting Camber and Toe are vital adjustments to affect how your touring car performs on the straights and the turns.
Toe In/Toe Out can be adjusted to increase or decrease steering and steering response.
Camber is the relationship of the tire to the ground, such that a tire that is perpendicular to the racing surface has zero camber. If the top of the tire leans in toward the car, it has negative camber; likewise, a tire that leans outward at the top has positive camber. Most RC touring cars will benefit from a negative camber degree, resulting in a slightly wider width and more static tire grip on the track surface, benefiting the turns and reducing roll-overs.
On your setup wheels, in your race wheels, or next to your setup station,SkyRC Digital Camber Gauge will give you incredibly accurate readings on the camber angle of your wheels.
The toe-tuning and camber-adjusting allow you to achieve your perfect tire wear and traction point.
This accurate gauge allows you to tweak your camber and camber gain settings, finding peace of mind that you are following a precise, replicable and trustworthy measurement tool.
All data can be read and kept on the phone!
The latest Tire Warmer with the silicone warming cup makes the heating more evenly, gives better heat preservation. Preheating the rubber tire surface increases the rubber's friction coefficient and enhances its grip on the track surface. Racing for RC hobbyists is made easy! SkyRC Tire Warmer will definitely give you the advantage of tire-readiness whenever you roll out onto the track.
